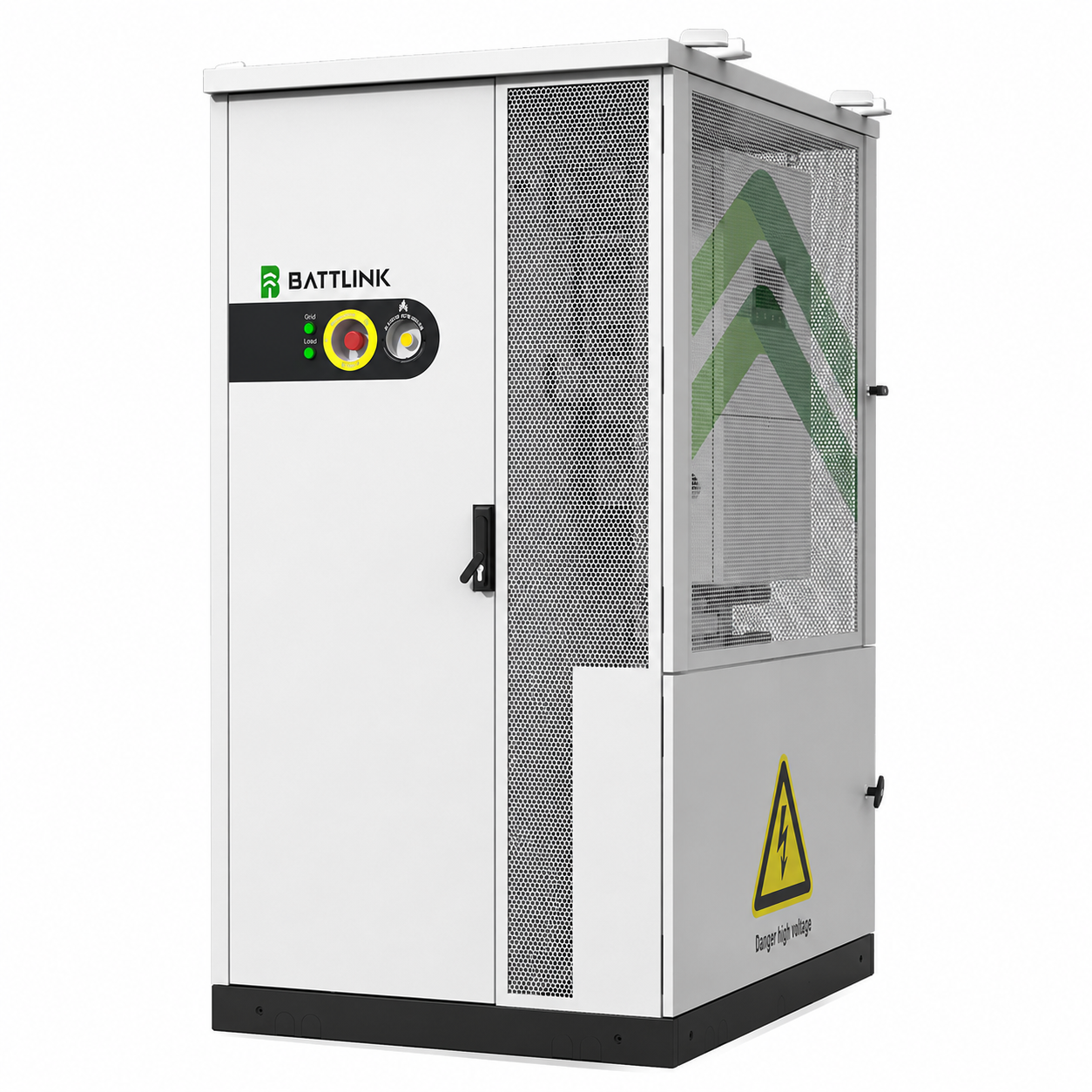

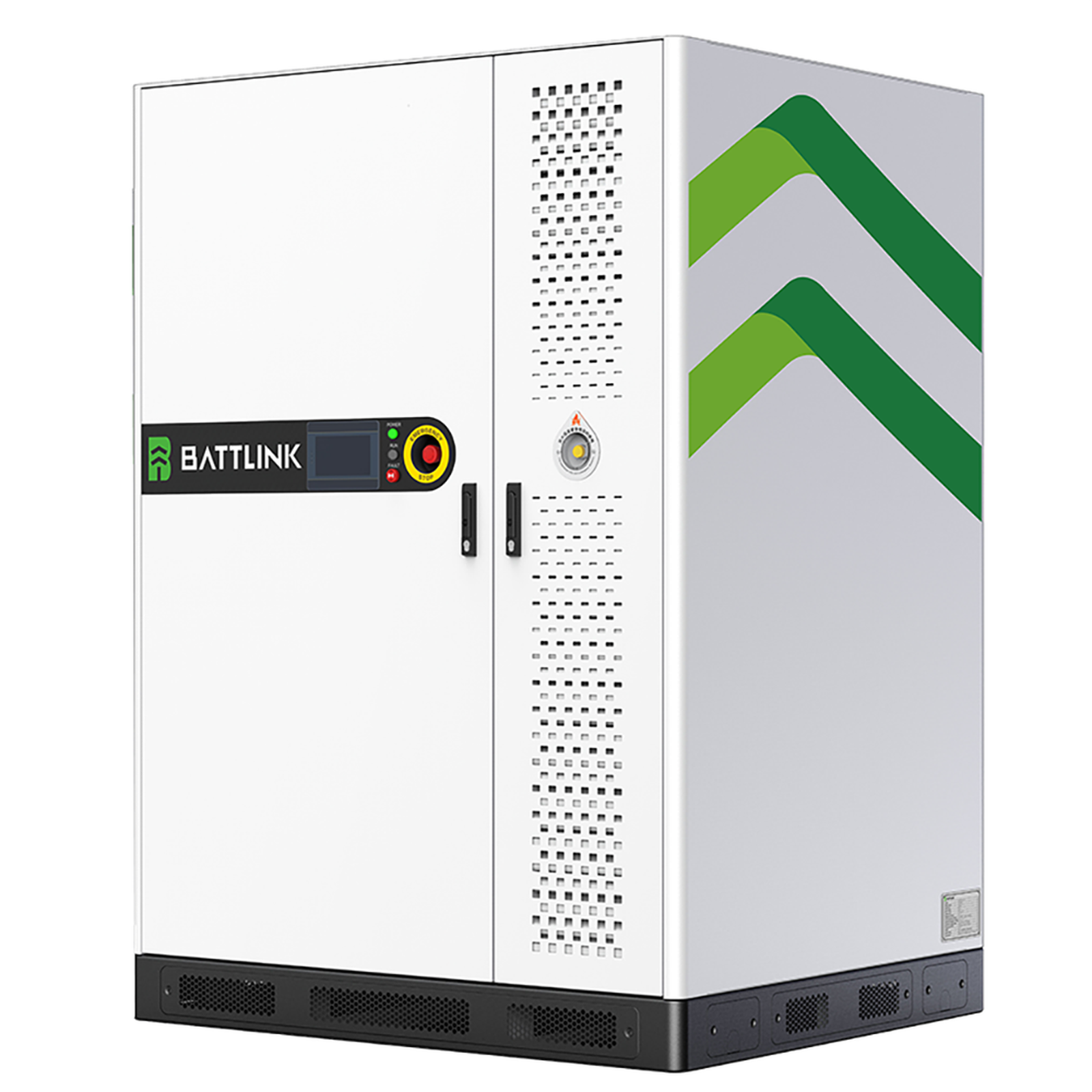

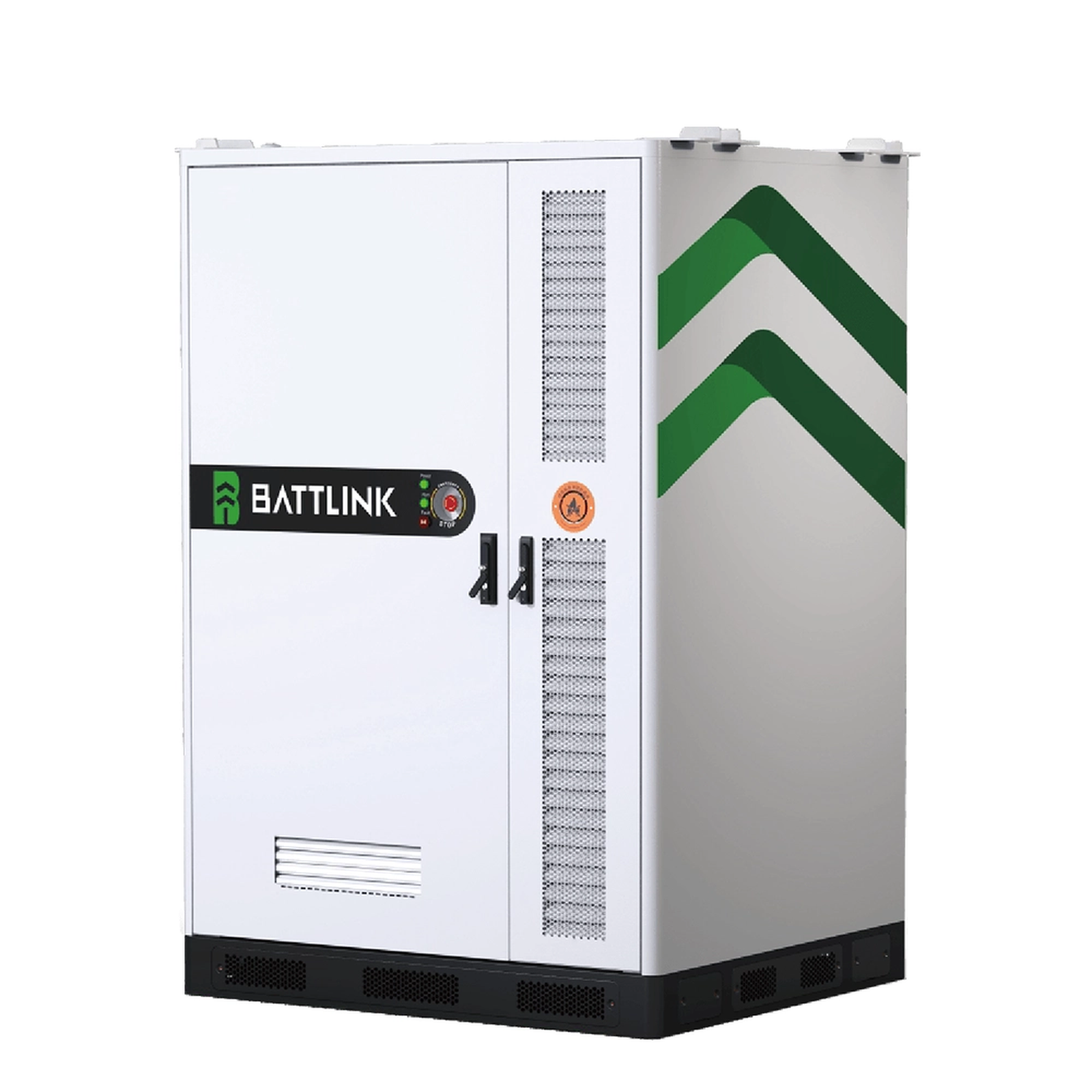

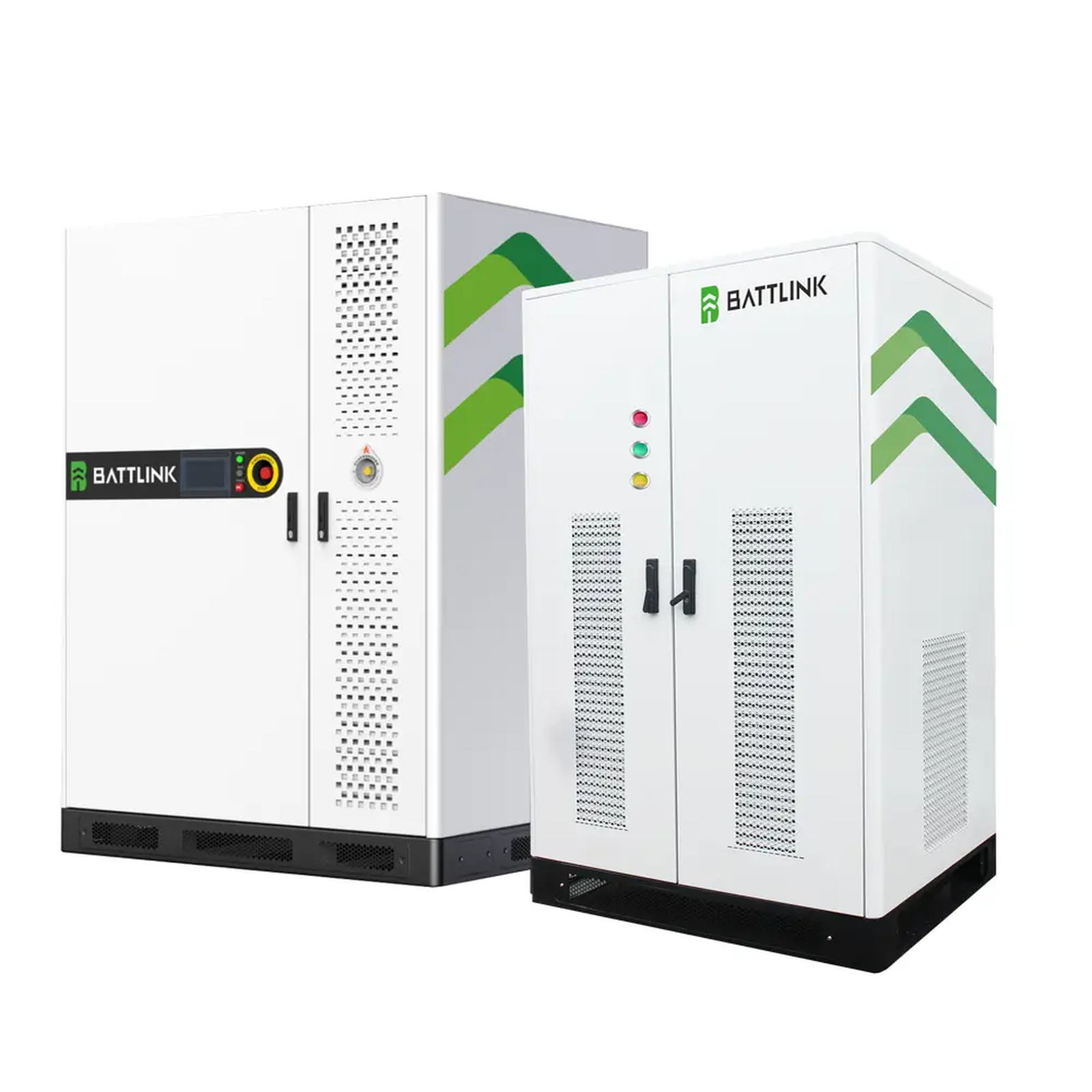

The 120kWh Micro-grid Air-cooled ESS is a fully integrated, all-in-one battery energy storage system designed to meet the evolving demands of commercial and industrial energy storage (C&I ESS). Engineered for performance, scalability, and safety, this system delivers seamless energy optimization and uninterrupted power supply for critical infrastructure.
Ideal for deployment in industrial parks, supermarkets, hotels, office buildings, data centers, and solar charging stations, this high-efficiency energy storage solution enables users to reduce electricity costs, maximize energy utilization, and enhance grid independence.
Key Features:
- All-in-One Modular Design: The compact cabinet integrates battery modules, BMS, PCS, EMS, and cooling systems for simplified installation and maintenance.
- Flexible System Expansion: Modular topology supports parallel connection and scalability to meet increasing energy demands.
- On-Grid & Off-Grid Capability: Dual-mode operation enhances system versatility for diverse application scenarios.
- Smart Monitoring & Remote Management: Real-time status tracking, cloud-based access, and multi-user platform support provide operational transparency and fault diagnostics.
- Advanced Safety & Protection: Features include zonal isolation, short circuit, over/under-voltage, overload, and overcurrent protection, ensuring robust and safe performance.
- High Performance: Long-term 110% overload capacity, 96 kW maximum input power, and high system efficiency of up to 86%.
- Environmentally Adaptable: With IP54 protection, air cooling, and fire suppression using perfluorohexanone, the system supports reliable operation in a wide temperature range (-20°C to +55°C) and up to 4000m altitude.
Technical Highlights:
- Battery Chemistry: LFP (LiFePO₄), 120.58kWh capacity, 6000-cycle life
- Nominal Power Output: 30kW / 50kW models available
- Charge/Discharge Rate: 0.5P
- Voltage Range: 324V–432V
- Communication Protocols: 4G, Wi-Fi
- Noise Level: ≤75 dB(A) @3m
- Certifications: UN38.3, IEC 62619, CEI 0-21, EN 50549-1/10, and more for global compliance
Whether supporting peak shaving, demand response, or renewable integration, the 120kWh Micro-grid Air-cooled ESS is your trusted solution for next-generation energy storage systems in the C&I sector.
Empower Your Business with Clean, Resilient, and Intelligent Energy.
