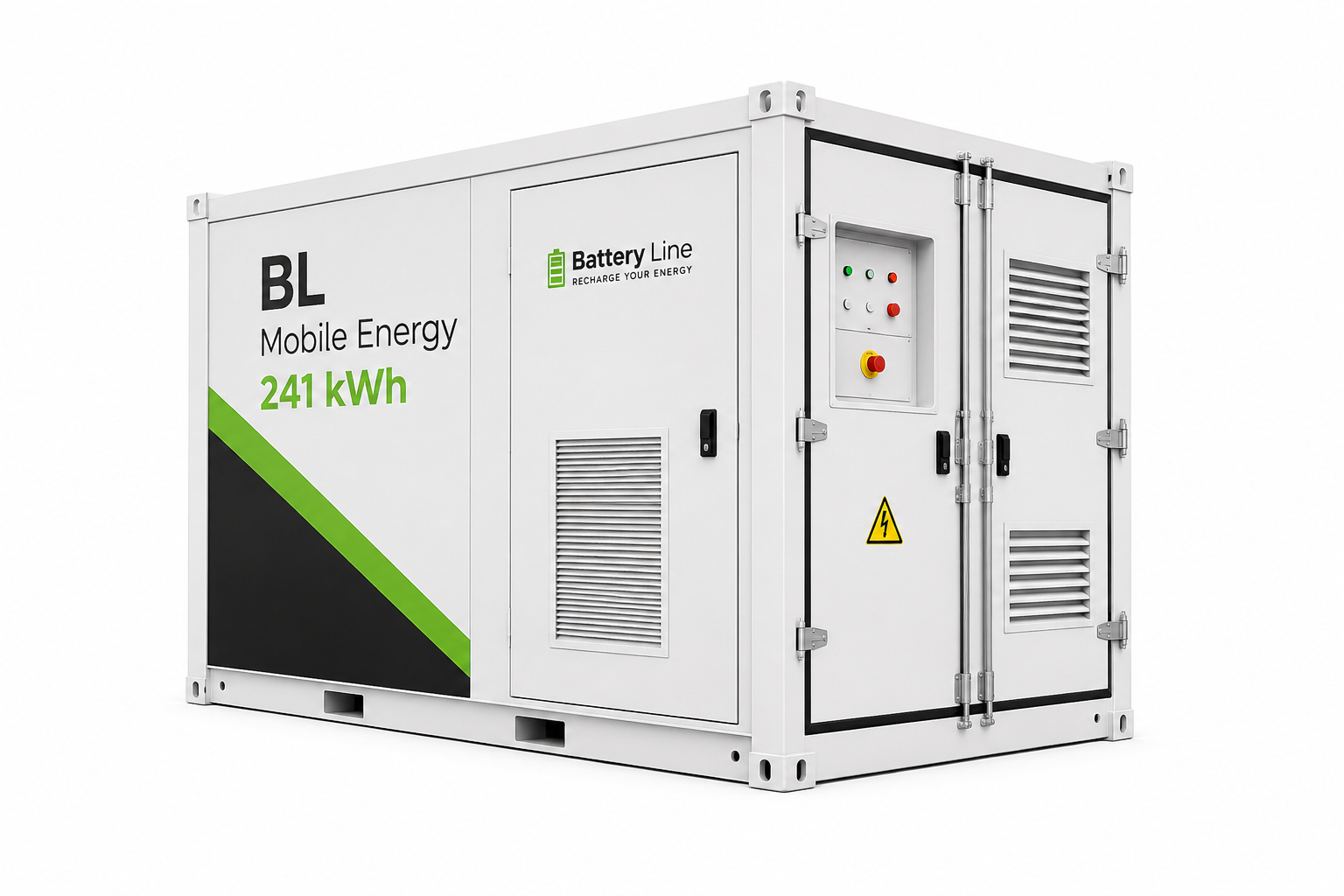

The 241kWh 120kW Mobile Hybrid Energy Storage System provides reliable, on-demand power wherever grid access is limited, unstable, or unavailable. It combines high-capacity energy storage with integrated AC and DC power outputs, making it ideal for temporary power supply, emergency backup, mobile EV charging, and off-grid applications.
With a wide operating voltage range, long cycle life, and intelligent energy management, the system ensures stable performance in harsh environments. Its compact, trailer-based mobile design allows fast deployment and easy relocation, so power can move with your project instead of holding it back.
Key Features:
- Smart and User-Friendly Operation: The system offers real-time status monitoring, fault recording, and early warning capabilities for proactive maintenance and post-fault analysis. It also provides cloud platform access, supporting multi-device connectivity and multi-user sharing.
- Efficient and Flexible Design: Featuring intelligent parallel control technology, the 241kWh On-grid Liquid-cooled ESS allows for unlimited capacity expansions. Its highly integrated and pre-assembled design simplifies transportation and maintenance.
- Safety and Reliability: Safety is prioritized with PACK-level immersion fire protection technology. The system also incorporates multiple circuit protections against short circuits, overvoltage, undervoltage, overload, and overcurrent.
- Powerful Performance: This commercial and industrial energy storage solution supports various application scenarios and can sustain a long-term 110% overload use.
Technical Specifications:

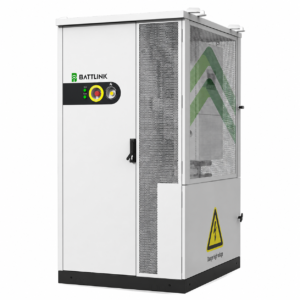

The BATTLINK BATT-CI-125/241-L model is an on-grid system with a battery capacity of 241.15 kWh. It utilizes LFP 3.2V/314Ah cells with a nominal voltage of 768V. The AC output parameters include a nominal power of 125kW, nominal voltage of 400V, and a nominal frequency of 50Hz/60Hz.
Key system parameters include an 88% system efficiency, liquid cooling for temperature control, and Perfluorohexanone for the fire fighting system. The ESS operates within a temperature range of −20 to +55∘C (with derating above 45∘C) and has an operation noise level of ≤75 dB(A) at 3m. It boasts an IP54 degree of protection and communicates via Ethernet using Modbus TCP/IP protocol. The system weighs 2.65T and has dimensions of 1400mm (W) x 1230mm (D) x 2100mm (H).
Applications:
This versatile C&I ESS can be deployed in a variety of settings, including industrial parks, supermarkets, hotels, office buildings, data centers, and solar charging stations. By integrating this battery energy storage system, businesses can effectively reduce electricity costs and enhance overall energy efficiency.
