Description

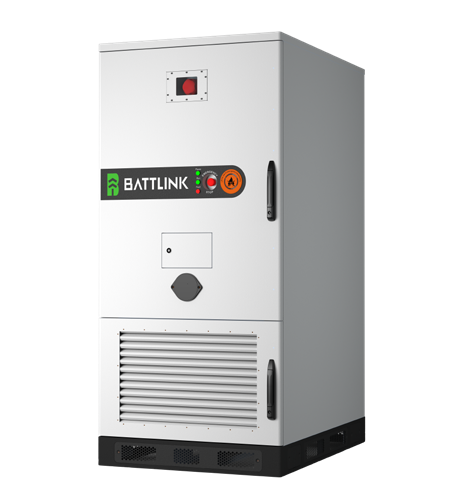

241kWh On Grid Liquid-Cooled ESS
The 241kWh On Grid Liquid-cooled ESS by BATTLINK is an advanced
battery energy storage system (BESS) designed for diverse commercial
and industrial (C&I) applications. This system utilizes an
independent liquid cooling system, allowing for high energy density
and efficient heat dissipation within a compact footprint.
Product Advantages
Key Features
Engineered for efficient and reliable commercial and industrial
energy storage with intelligent safety, flexible expansion,
optimized space utilization, and advanced liquid cooling.
Efficiency & Flexibility
Excellent noise suppression delivers a quiet operating
environment while supporting flexible commercial and
industrial energy storage applications.
Parallel Expansion
Supports parallel operation of multiple units, making it
easier to expand system capacity as future energy
requirements increase.
Energy & Space Saving
An optimized footprint provides significant land-use
savings, while lower operational energy consumption
contributes to improved economic benefits.
Intelligent & Safe
Multiple safety protection mechanisms provide intelligent
risk prevention and control for dependable operation in
commercial and industrial environments.
Peak-Valley Arbitrage
Supports peak-valley arbitrage to optimize energy usage and
effectively reduce electricity costs for commercial and
industrial users.
Independent Liquid Cooling
An independent liquid cooling system enables efficient heat
dissipation and supports high energy density within a
compact system footprint.
Product Specifications
Technical Highlights
The BATTLINK BATT-CI-125/241-L1 combines high-capacity LFP battery
technology, liquid cooling, intelligent safety, and Ethernet
communication for dependable on-grid commercial and industrial
energy storage.
| Model | BATT-CI-125/241-L1 |
| System Type | On-Grid ESS |
| Battery Chemistry | LFP 3.2V / 314Ah |
| Battery Capacity | 241.15 kWh |
| Nominal Battery Voltage | 768V |
| Nominal AC Output Power | 120 kW |
| Nominal AC Voltage | 400V |
| Nominal Frequency | 50Hz / 60Hz |
| System Efficiency | 91% |
| Thermal Management | Liquid Cooling |
| Fire Fighting System | Aerosol |
| Operating Temperature | −20℃ to +55℃ (Derating Above 45℃) |
| Operating Noise | ≤60 dB(A) at 3m |
| Degree of Protection | IP55 |
| Communication | Ethernet |
| Communication Protocol | Modbus TCP/IP |
| Weight | 2.6T |
| Dimensions (W × D × H) | 1040mm × 1472mm × 2154mm |
Product Documentation
Technical Datasheet
241kWh On Grid Liquid-Cooled ESS
BATTLINK BATT-CI-125/241-L1 Product Technical Datasheet
